1.6.4. Results postprocess

When a simulation is running or has finished, it is possible to access the Postprocess by clicking on the ‘Results’ button.

../../../_images/eseafem_menu_results.png

Fig. 1.144 Results menu: It opens the postprocess interface where results can be shown.

../../../_images/eseafem_results_post.png

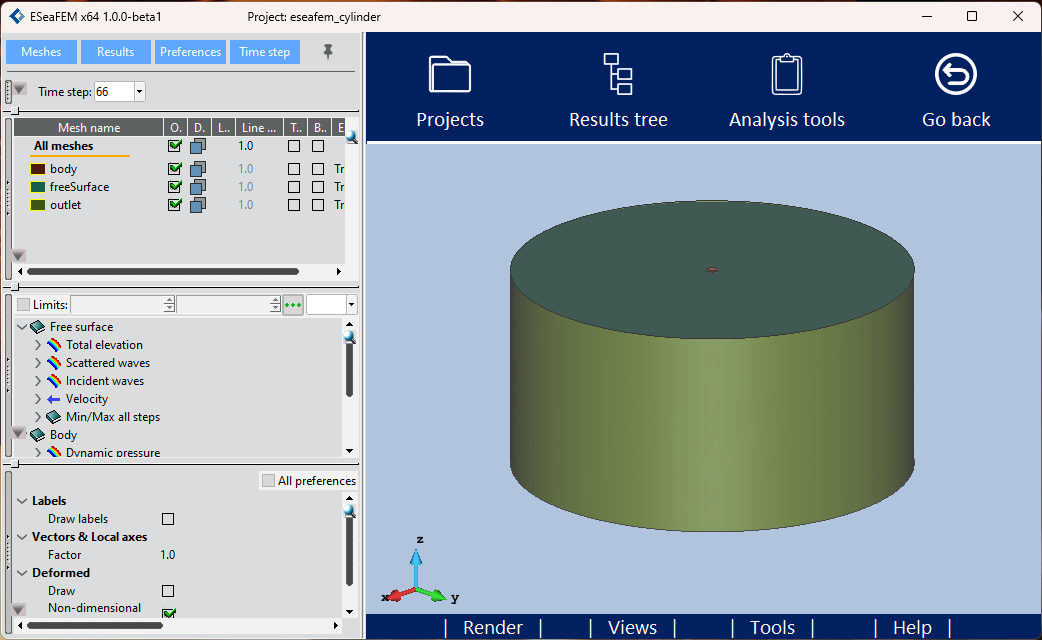

Fig. 1.145 General view of E-SeaFEM Postprocess. It allows to display the results of the last simulation run.

This chapter describes the specific options of E-SeaFEM Postprocess. The Project, Render, Views and Tools menus are explained in the chapter Main window and menu options. The Results tree menu is explained in the Tdyn Postprocess manual.

1.6.4.1. Analysis tools

../../../_images/eseafem_analysis_tools.png

  • SeaFEM graphs:

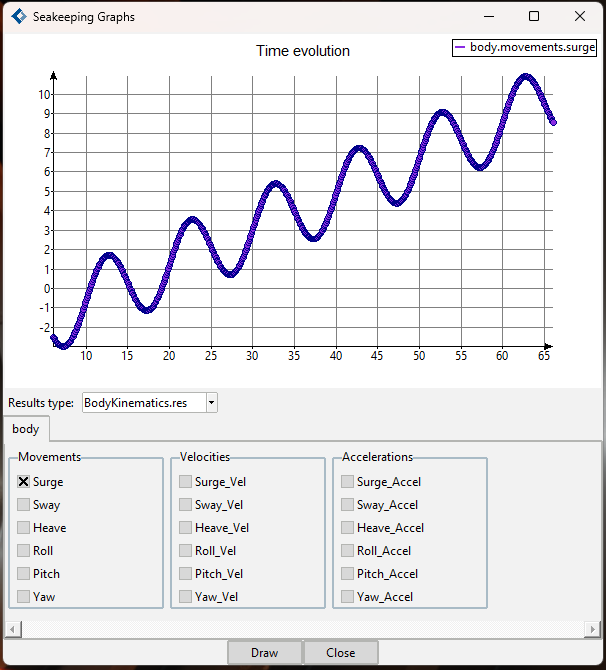

    ../../../_images/eseafem_graphs.png

    This option allows to show several results graphs such as Movements, Velocities or Accelerations.

1.6.4.2. Go back

../../../_images/eseafem_go_back.png

It closes Postprocess and opens Preprocess again.
